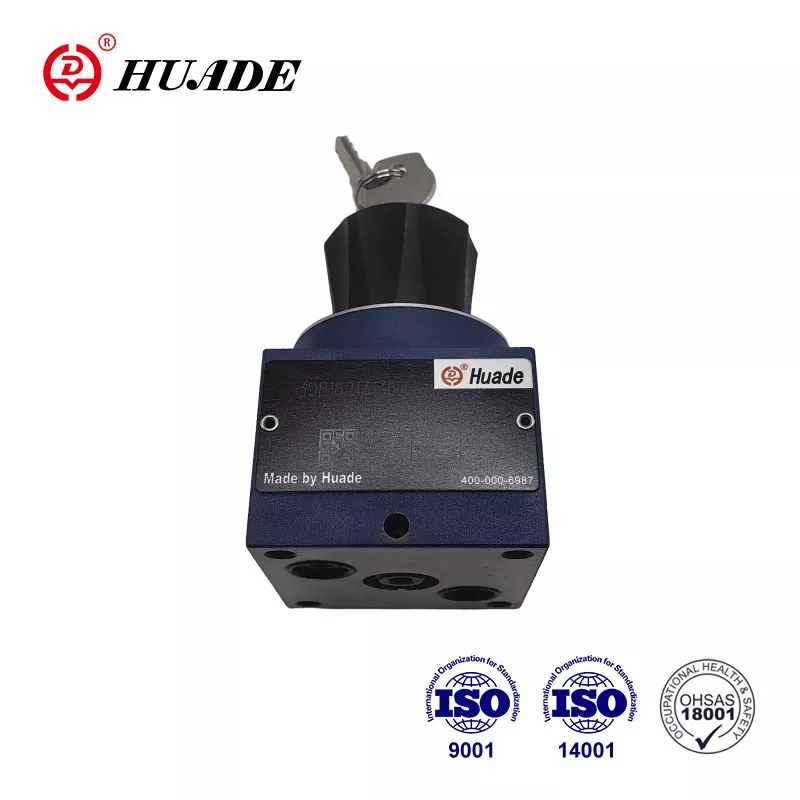

Ko te rerenga rere 2FRM ko te 2-ara rere mana whakahaere. Ka whakamahia mo te tarai. Ko Huade® he waitohu pono i Haina. Na roto i nga mahi tahi e rua mo te wa roa me Rexroth, he hototahi nga reera whakahaere rere a Huade® ki nga raupapa rite i tukuna e Rexroth. Ahakoa i roto i te kounga o te hua, te auahatanga hangarau, te ratonga kaihoko, te ingoa waitohu ranei, he pai te mahi a Huade Hydraulic me te toa rongonui mai i te maakete me nga kaihoko.
|
Whānui |
|
|
Wai waikura |
Ko te hinu kohuke (mo te hiri NBR), he phosphate ester ranei (mo te hiri FPM) |
|
Awhe pāmahana(℃) |
-30 ki+80 |
|
Awhe pokey(mm²/s) |
10 ki te 800 |
|
Pereti hanawiti kaiwhakatikatika |
|
|
Rere.mōrahi (L/mene) |
15 |
|
Te pēhanga mahi (MPa) |
tae atu ki te 21 |
|
Pehanga pakaru (MPa) |
0.1 |
|
Taumaha(kg) |
0.6 |
|
2-ara rere rere takirere |
||||||||
|
Rere. qv mōrahi (L/mene) |
0.2 |
0.6 |
1.2 |
3.0 |
6.0 |
10.0 |
15.0 |
|
|
∆p me te rerenga hoki kore utu B → A, qv -ti'aturi (MPa) |
0.05 |
0.05 |
0.06 |
0.09 |
0.18 |
0.36 |
0.67 |
|
|
Whakahaere rere |
pūmau-mahana |
±5% |
±3% |
± 2% |
||||
|
pehanga-uu (tae noa ki te |
±2% |
4% |
||||||
|
Te pehanga whakahaere, te teitei- tauranga A (MPa) |
ki te 21 |
|||||||
|
Awhe rerekētanga pēhanga iti (MPa) |
0.3 ki te 0.5 |
0.6~0.8 |
||||||
|
Te taumata poke (μm) |
25 (Q<5L/min) |
10 (Q <0.5L/min) |
||||||
|
Taumaha (Kg) |
1.6 |
|||||||
Āhuatanga:
▶ Tauira kawe ki te DIN 24 340, mai i A, ISO 4401 me CETOP - RP 121H
▶ Kaitiaki whiu whiu, ka taea
▶ Te heke o te peke whakaoho
▶ Mana rere i nga taha e rua ma te whakamahi i te pereti hanawiti whakatika
▶ Kopa hurihuri ka taea
Taupānga:
Rere control valve, momo 2FRM he 2-way control valve, e whakamahia ana mo te throttling me te kore e pa ki te pehanga me te pāmahana.
Ko te 2-ara rere rere 2FRM te nuinga o te whare(1), te huānga tautuhinga(2), te orifice(3), te kaitakawaenga pehanga (4) me te taapiri whiu me te taki taki(5) ka whakamahia mo te tarai. o te rere i raro i te pehanga iti me te whakawhirinaki ki te pāmahana.
Ko te wahanga whiti kaitapa ka whakatauhia e te hurihanga o te raka pihi(7).Kia noho motuhake te rere mai i te pehanga i te waahi kaitapa(8) ka honoa he kaitakawaenga pehanga (4). Ko te mana motuhake ko te hua o te waahi kaitao i hangaia hei orifice.
Ko te hokinga kore utu mai i B ki A ma te taki taki(5).
I roto i te tikanga ki te tae te mana i roto i te rere o te takirere i roto i tetahi huarahi i reira ko te pea ki te tāuta i te momo pereti hanawiti whakatika Z4S i raro i te piha mana rere.
Hanganga o te Rere Mana Valve 2FRM 5
Tohu o te Rere Mana Valve 2FRM 5
