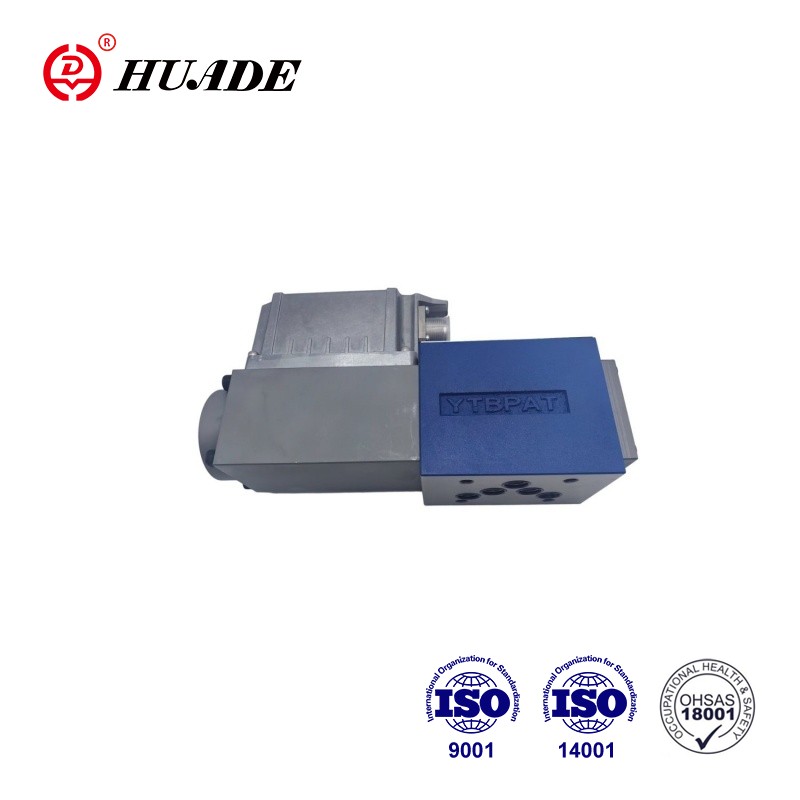

Ko te valve 4WRPEH 10- 3X he tohu mana whakahaere tika me nga urupare tuunga hiko me te hikohiko whakauru (OBE). Ko te 4WRPEH 10- 3X he riipene kua oti te whakanoho me te tino tika o te whakautu me te pai mo te tuunga teitei, te tere, me te mana pehanga. Ko te kaupapa mahi o te servo proportional valve tika ka taea te whakarapopotohia: ko te matua o te takirere ka peia tika e te kaha hiko ki te whakatutuki tika i te rere o te wai me te pehanga.
| Raraunga hangarau | ||
| General | ||
| Momo hononga | Te whakapuru pereti | |
| Tauira kawe | ISO 4401-05-04-0-05 | |
| Taumaha (kg) | 7.1 | |
| Tūnga tāutanga | Tetahi | |
| Awhe pāmahana taiao (°C) | –20 … +60 | |
| Te pāmahana kawe(°C) | –30 … +80 | |
| Wā rokiroki mōrahi (Tau) | 1 | |
| Te haumākū whanaunga mōrahi (karekau he tōhau) (%) | 95 | |
| Ko te karaehe whakamarumaru kia rite ki te EN 60529 | IP65 (mehemea e tika ana, e tika ana hoki te whakauru i nga hononga hono) | |
| Te pāmahana mata teitei (°C) | 150 | |
| Uara MTTFD i runga i te EN ISO 13849 (Tau) | 150 (mo etahi atu taipitopito tirohia te pepa raraunga 08012) | |
| Ko ona whakamatautau kia rite ki te DIN EN 60068-2-6 | 10 ... 2000 Hz / mōrahi o te 10 g / 10 huringa / 3 tuaka | |
| Te whakamatautau haruru e ai ki te DIN EN 60068-2-64 | 20 … 2000 Hz / 10 gRMS / 30 g teitei / 30 min. / 3 toki | |
| Te wiri waka e ai ki te DIN EN 60068-2-27 | 15 g / 11 ms / 3 wiri / 3 toki | |
| Riri rite ki DIN EN 60068-2-27 | 35 g / 6 ms / 1000 wiri / 3 toki | |
| Whakaritenga | ▶ CE kia rite ki te tohutohu EMC 2014/30/EU, i whakamatauria kia rite ki | EN 61000-6-2 me EN 61000-6-3 |
| ▶ Aratohu RoHS | 2011/65/EU | |
| Hydraulic | |||
| Te pehanga whakahaere teitei | ▶ Tauranga A, B, P (pae) | 350 | |
| ▶ Tauranga T (pae) | 250 | ||
| Wai waikura | Tirohia te ripanga i te wharangi 7 | ||
| Awhe pokey | ▶ E taunaki ana (mm2/s) | 20 … 100 | |
| ▶ Morahi e whakaaetia ana (mm2/s) | 10 … 800 | ||
| Awhe pāmahana wē waihā (rere-ma-roto) (°C) | -20 … +70 | ||
| Te tohu morahi e whakaaetia ana mo te poke o te wai waipēhi; karaehe ma kia rite ki te ISO 4406 (c) | Karaehe 18/16/13 | ||
| Rere kua tohua (∆p= 35 pae mo ia tapa mana) (L/min) | 50 | 100 | |
| Te herenga o te whakamahi (∆p) e pā ana ki te whakawhiti ki te failsafe (he uara ki te tapa whakarāpopoto) | ▶ Tohu C3, C5, C (pae) | 350 | 140 |
| ▶ Tohu C1, C4 (pae) | 250 | 100 | |
Āhuatanga:
▶Te ti'aturi - hoahoa whakamatau me te pakari
▶Haumaru - he kore-haumaru te tuunga o te spool mana i roto i te ahua whakaweto-atu
▶He pai te hiko - kaore he tono hinu pairati
▶Kounga teitei - te poroporo whakahaere me te ringaringa i roto i te kounga servo
▶He ngawari - he pai mo te tuunga, te tere me te whakahaere pehanga
▶Piti - te aro nui ki te whakautu me te hihiko iti
▶Atanga hono-IO, he mea whiriwhiri
▶Atanga hono-IO, he mea whiriwhiri. Whakamahi o te takirere ki
IO-Link hei huānga kati-atu ki te kāwai 3,
PL d rite ki EN 13849-1.
Taupānga:
Ko te 4WRPEH10-3X te wa e whakamahia ana i roto i te waahanga o te ahumahi ahumahi, te miihini miihini me te miihini moana.
Whakaritenga
Ko te pihanga whakautu teitei HD-4WRPEH ko:
▶ Whare takirere me te poroporo whakahaere me te ringaringa i roto i te servo
kounga (1)
▶ Whakahaerehia te solenoid me te whakawhiti tuunga (2)
(mehemea me te peera tiaki hikohiko (6))
▶ Hikohiko i runga i te papa (OBE) (3) me te atanga tairitenga, IO-Link ranei (4) (mehemea me te whakamaarama
pereti (5))
Mahi
Ko te hikohiko whakauru (OBE) ka whakataurite i te uara whakahau kua tohua ki te uara tuuturu. Mena he rereke te whakahaere, ka whakahohehia te solenoid whiu. Na te huringa o te kaha solenoid, ka whakatikahia te spool mana ki te puna. Ko te whiti-a-waea o te whiu/poka whakahaere ka whakahaerehia kia riterite ki te uara whakahau. Mena he uara whakahau te tatūkē 0, ka whakatikahia e te hikohiko te porowhita mana ki te puna ki te turanga o waenganui. I roto i nga ahuatanga kua whakakorehia, ko te puna ka kore e pupuhi ki te teitei me te waahi kei te noho haumaru-kore.
Mahi Haumaru (Io-Hono-whakaweto)
Ma te kati i te ngaohiko tuku i te IO-Link master (Class B-Port), titi 2 me 5, ka taea te whakaweto humarie te takirere IO-Link. Whai muri i te katinga o te ngaohiko tuku, ka whakatauhia te spool mana o te takirere ki te waahi kore-haumaru.
Hei whakapumau hoki i te tikanga o te waipēhi mo te katinga-ahuru, me whai whakaaro ano hoki te inaki o te porowhita whakahaere.
Ko nga tohu C3, C5, C4 me C1 kia nui te inaki.
Ko te kati haumaru ehara i te waahanga o te IO-Link valve me whai whakaaro mo te hoahoa haumaru o te miihini.
Whakahaere solenoid kati-atu
I nga hapa e whai ake nei, ka whakakorehia nga solenoids mana e te hikohiko whakauru (OBE) ka whakatauhia te spool mana ki te waahi kore-haumaru:
▶ Ka taka ki raro i te ngaohiko tuku iti
▶ I te atanga "F1" anake:
– Ka taka ki raro i te iti rawa o te uara whakahau o naianei o te 2 mA (kei roto ko te wehenga taura o te raina uara whakahau (koropiko o naianei))
▶ I te atanga "L1" anake:
– Whakahohehia te hohekore, te aukati korero
(kuri kaitiaki)
– Ki te he o roto IO-Link
▶ I te atanga "C6" anake:
– I tua atu, tuku hohekore
Pereti riu "D"
Ko te pereti damping (5) ka whakaiti i te whakaterenga
amplitudes i runga i te hikohiko i runga i te papa (auau > 300 Hz).
Panui:
Ko te whakamahi i te pereti damping kaore i te tūtohutia mo nga tono me te nuinga o te waa-iti te whakaihiihi <300 Hz.
Peera tiaki hiko "-967"
- Hei aukati i te hanga condensate i roto i te whare o te hikohiko whakauru (OBE), ka taea te whakamahi i te membrane tiaki hiko (6).
E taunaki ana mo te whakamahi i waho o nga tikanga paerewa-ahumahi me te makuku hau ambient teitei me te
huringa nui o te pāmahana hurihanga (hei tauira ki waho).
Nga tohu o Wehenga Ahunga Servo 4WRPEH 10-3X
