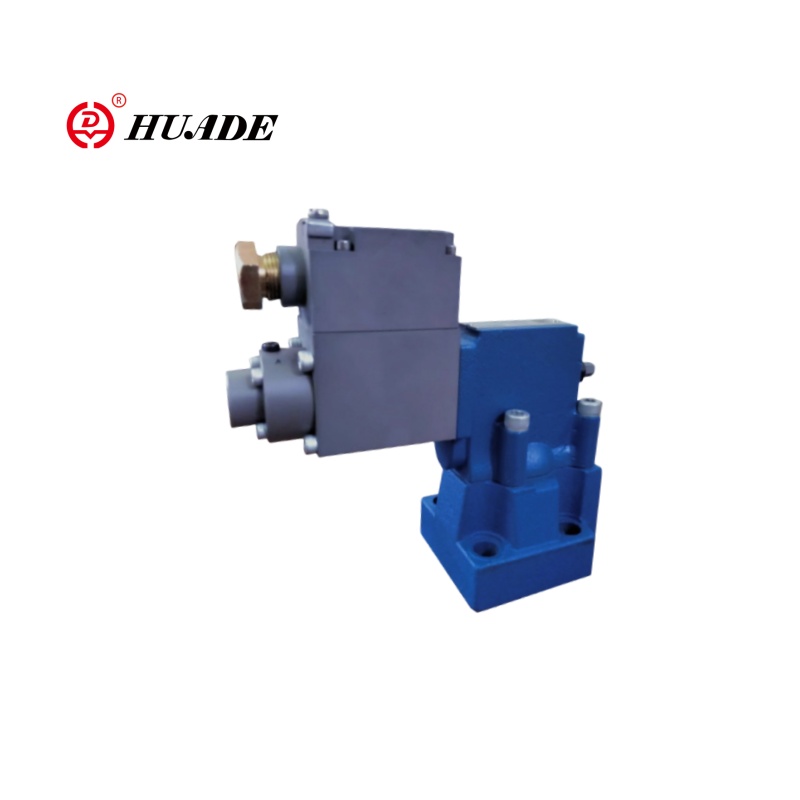

Ko te whakaaturanga whakaora i te raupaparorohiko a Valve DBY he tohu arai hiko hiko mo te haki me te ahuwhenua hiko, me te ture pehanga totika me te tino kaha. Ko te whaainga awhina mo te whakaoranga i hangaia e te DBE-i roto i te mahi whakaora i te miihini, ka huri aunoa ki te pehanga haumaru ka mutu te mana. Me nga paninga kakahu-kore i runga i te matua matua ka taea te tuku i te koiora ratonga.
| Huatau | Te hinu kohuke e tika ana mo te hiri NBR me te FKM |
| Phosphate Ester mo te hiri FKM | |
| Whanui pāmahana wai ℃ | -30 ki te +80 (hiri nbr) |
| -20 ki te +80 (hiri fkm) | |
| Range Tāpāho MM2/ s | 2.8 ki te 380 |
| Rārangitanga | ± 3.5% |
| Tukunga | <± 2% |
| Hiko | |
| Pū pūtake | Dc |
| Min.colenoid nāianei ma | 100 |
| Max.Solenoid On Gor | 800 |
| Ātete o te wai | 19.5ω i te 20 ℃, Uara Max.Warry Uara: 28.8ω |
| Tūnga mahi | Māu tonu |
| Pāmahana paerua o te taiao | + 50 ℃ |
| Te whakauru ki te Din 40 050 | Ip65 |
Nga waahanga:
-Tukuhia-papa pereti:
- Tauira Whakatakotoranga ki te 100 340 Puka E me te ISO 6264
- Mo te whakaurunga i roto i nga Manfilds
- 4 nga whakatauranga pehanga
- Max. Te aukati i te pehanga, he kowhiringa
- Momo Acrofier VT-2000 (me whakahaua kia wehe)
Tono:
Ko te pehanga o te pehitanga o te puhoi a te besaf mo te whakaheke i nga papa reti.
Tauira:
Te Huringa-Whakaaturanga PLC → Te Whakaputa-Protaf Amplifier → Dbe Valve → Te Haumaru Hauauru
↑
Te Whawhai Putea Putea-Whakaputa (Urupare)
Te Whakaputanga Toi-a-Tautoko a Besaf DELVE DBE ko te whakawhiwhi i nga pehanga whakaora whakaora. Ka whakamahia te reira tonu ki te whakatakoto i te pehanga i nga punaha hydraulic ma te tohu hiko.

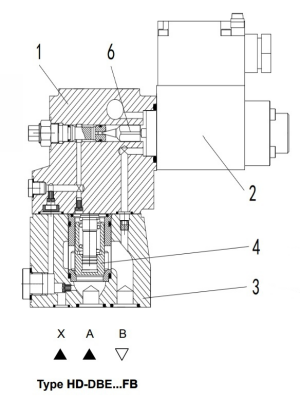

Ko te tikanga ko enei tohu whaanui kei roto i te wahapura (1) me te solenoid solenoid (2) me te urupa matua (3) me te whakauru i te rehu matua (4).
Patohia te HD-DBE ... FB
Ko te rohe o te pehanga e pa ana ki te uara hiko o naianei me te whakarite i te papatohu o te solenoid (2). Ka whakamahia te pehanga pūnaha ki te kohinga matua (4). I te wa ano ka whakamahia te pehanga ki te puna i te taha o te Spool matua (4) me te paltiot poppet (6) ma te Onerif (5) i te raorao Parati (1). Mena ka nui ake te kaha o te hauraro i te kaha o te solenoid, ka tuwhera te puranga (6). Ka rere te rere o te kaipoipo ki te tank me te maturuturunga iho na te hunga o te tohungatanga matua (4). Katahi ka whakatuwherahia te papa (4) te whakatuwhera i te hongere mai i te papu ki te tank.

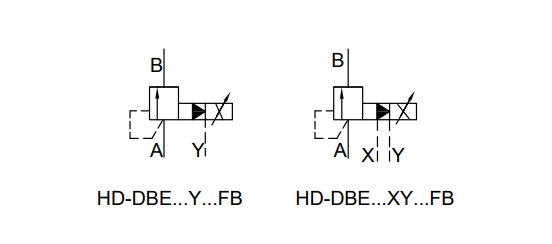

Tohu o Te pehitanga pehitanga pehitanga a te puhoi
