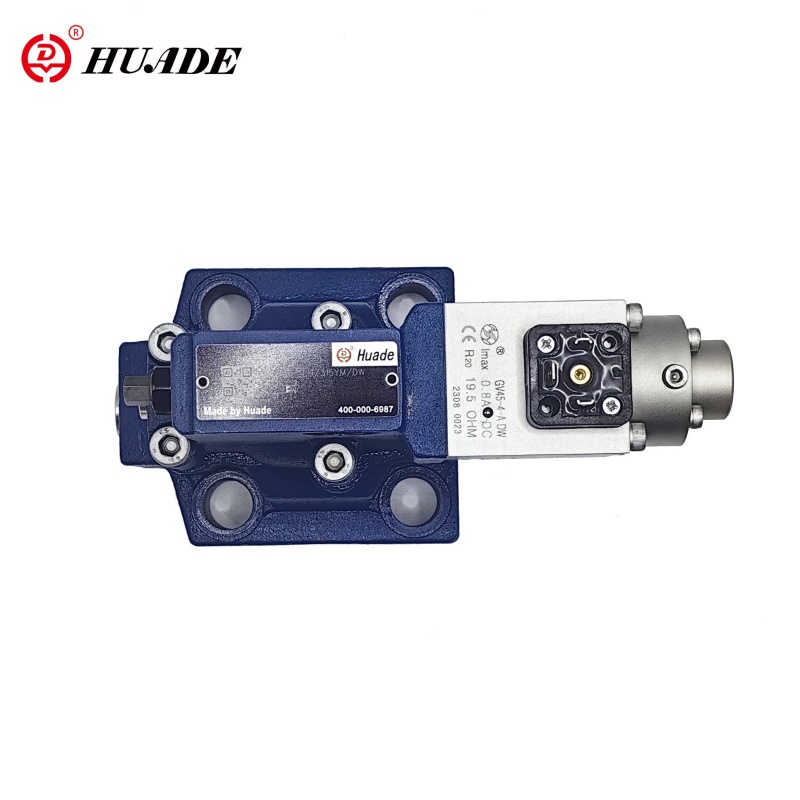

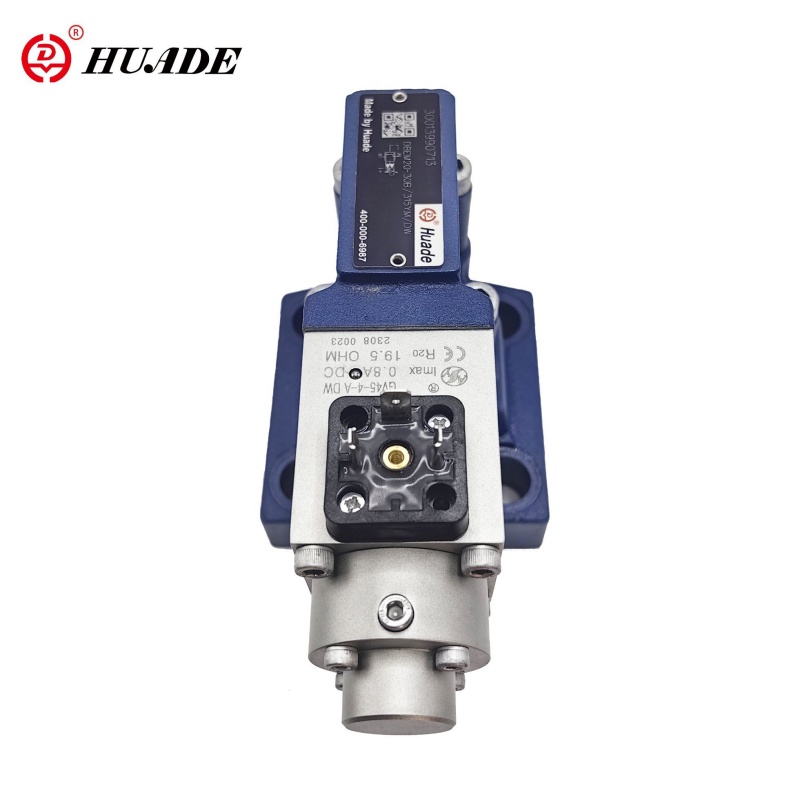

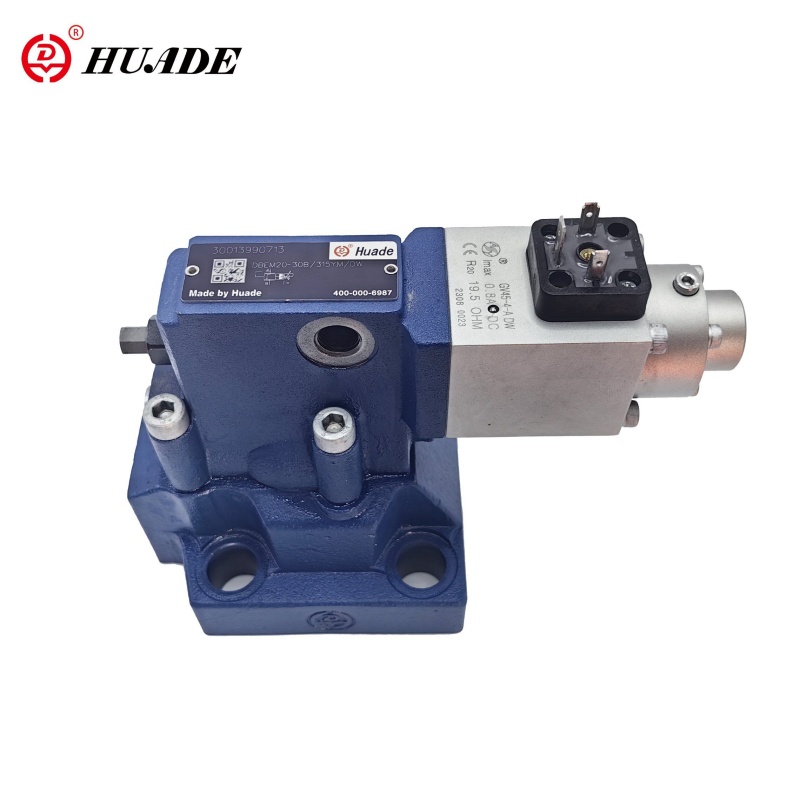

Te Whakahauhau Toi Whakaora Motuhake DBEM
Ko te Whakahauhau Whakawhanake-I-Whakapaipai i te Haangai a Vabem DBEM he kaiwhakaora whakaora-whakaora ki te waahanga hiko whakakotahi (OBE). I whakamahia tuatahi ki te whakawhāiti i te pehanga o nga punaha hydraulic me te tuku whakarereketanga o te pehanga o te punaha ma nga tohu mana hiko. Ko tenei mataaratanga tika e whakaatu ana i nga ahuatanga whakahaere, te pehanga pumau, me te urupare hihiri, i whakamahia i roto i nga punaha hydraulic e hiahia ana ki te whakahaere pehanga.
Huanga hua o te pehitanga pehanga matapae
| Raraunga Hydraulic | ||||
| Max.operating Press Ports A. B me X (MPA) | 31.5 | |||
| Whakahokia te Pepe (MPA) | Port Y, wehe me te aukati i te pehanga kore ki te tank | |||
| Max. Tae reanga (MPA) | 5. 10. 20. 31.5 rite rite te taumata pēhanga | |||
| Min. Tae reanga (MPA) | Tirohia nga pihi tohu | |||
| Max. Te Haumarutanga (MPA) | pēhanga reanga | |||
| 5 | 10 | 20 | 31.5 | |
| 1to 62 | 1to 122 | 1 ki te 222 | 1to 342 | |
| Max. rere (l / min) | 10 | 20 | 30 | |
| 200 | 400 | 600 | ||
| Flot flot (l / min) | 0.7 ki te 2 | |||
| Raina (%) | ± 3.5 | |||
| Whakahoutanga (%) | <± 2 | |||
| Te rereketanga o te rereketanga (%) | <± 2 max. pēhanga | |||
| Hysteresis (%) | Me te kaiwhakatuma ± te 1.5 o te max.psurere.without surge ± 4.5 o te max.pressure | |||
| Te wa whakawhiti | 30 ki te 150 | |||
| Te wai pēhanga | Te hinu kohuke (mo te hiri NBR), Phosphate Ester (mo te hiri FPM) | |||
| Raero Tirohanga (MM2 / S) | 2.8 ki te 380 | |||
| Te whānuitanga o te whānuitanga o te pāmahana (℃) | -20 ki te + 70 | |||
| Tohu o te poke (μm) | ≤20 (Taunakitanga 10) | |||
| Raraunga Hangarau Hangarau | |
| Tīwerawera | VT-200g40 i tukuna me te Valve tahi |
| Taha Taha | Dc |
| Min.control o nāianei (a) | 0.1 |
| Max.Control Currel (A) | 0.8 |
| Te ātete o te COIL (ω) | Uara makariri i te 20 ℃ ko 19.5; Ko te uara max.wam ko te 28.8 |
| Te whānuitanga o te whānuitanga o te pāmahana (℃) | +50 |
| State Mahi | Tonu |
| Tiaki Tiaki | Ip65 |
| Hononga hiko | puru |
Nga waahanga:
▶ Mo te piki ake
▶ i te poraka i te poraka
te kowhiringa o te aukati pehanga nui rawa atu na te puna o te puna tiaki
▶ Valve me te mana hiko kotahi te puna
Tono:
Ko te Whakahauhau Whakawhanake Whakapaipai i hangaia i roto i nga punaha whaanui e hiahia ana ki te whakahaere pehanga, penei i nga miihini miiharo, me nga miihini mate. I roto i enei tono, ko te Vabem Valve e whakarite kia pai te whakahaere o te punaha hydraulic me te whakapai ake i te kaha whakaputa.
Ko enei punaha he rite tonu ki te raarangi whakahaere paerewa (1) me te solenoid solenoid (2) me te valve matua (3) me te whakauru i te spoloto matua (4).
Momo DBE:
Ko te whakatikatika o te pehanga ko te uara whakahau e whakawhirinaki ana ki te solenoid solenoid (2). Ko te pehanga kei roto i te tauranga A Ka mahi i runga i te raro o te kohinga matua (4). I te wa ano ka mahi tenei pehanga i te puna i te taha o te kohinga matua (4) ma te whakarangatira (5). Ko te kaha hydraulic e mahi ana i runga i te paltit paltit (6). I te wa e haere mai ai te kaha hydraulic i te kaha o te solenoid katahi ka tuwhera te paltiot (6) tuwhera. Na te mea ka taea e te hinu whakakapi te rere ki te tank ma te Port Y, ka puta he maturuturunga iho i te punga matua me te whakaara i te kaha o te puna. Ko te hononga mai i te a B ki te whakatuwhera a kaore ano kia piki ake te pikinga
Patohia te dbem:
Kōwhiringa Ka taea te tohaina me te taapiri i nga puna taapiri i utaina mo te haumaru pehanga nui (te haumaru o te pehanga o te pehanga)
Hanganga o Te Whakahauhau Toi Whakaora Motuhake DBEM
